PRODUCT INFORMATION:

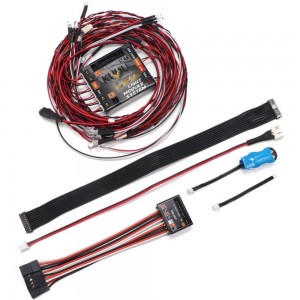

This is a complete LED light system for the Boom Racing BRX02 Link / Leaf with D110 body (4x4) and D110 6x6. This set includes a main LED light unit, a sub unit, a main connecting cable connecting the main and sub units, a set switch cable, a battery cable (2s), a buzzer (for reverse and low voltage detection), nine LED light cables, four 20cm extension cables (for 6x6) and a user manual.

The module has a default setting already installed. This is a highly adjustable LED light system. Different lighting options can be accessed through the setup mode.

Features:
Low-voltage detection capability
Includes one high-voltage module plug rated 7.4v-12.6v (e.g. for roof light)
Six high-power light plugs (up to 16 LEDs each) with power settings
Blinkers can be turned on and off, or use a toggle switch to operate
Brake light includes standard, drag, and crawler modes
Blinker and Hazard mode settings with flash rate options
Reverse beeper included
Ten flash mode toggle switch options
Auto hazard start time setting
Channel 2 and 4 polarity setup

Included LED Lights:
2x Left & Right - 3mm Yellow (2x parallel)
2x Left & Right - 3mm Yellow (1x parallel)
1x Front 1 - 5mm Cool White (2x parallel)
1x Front 2 - 3mm Cool White (2x parallel)
1x Reverse - 3mm Cool White (2x parallel)
1x Brake - 3mm Red (2x parallel)
1x Fog - 5mm Red (4x parallel)

Specifications:
Input Voltage: 5-7.4V (powered by BEC)
Battery Type for Low Voltage Detection: LiPo 2S (user define max 12.6V)
Size (LxWxH):
Main Unit: 45x41.3x11.7mm
Sub Unit: 24.5x18.5x12mm
Weight:
Main Unit: 14g
Sub Unit: 10g

Fits:
BRX02 Link w/ D110 body
BRX02 Leaf w/ D110 body
BRX02 6x6 w/ D110 6x6 body
Package total weight: 78.00 grams (incl. packaging)
Factory description: Boom Racing BRX02 KUDU™ LED Light Module System for BRX02 D110 4x4 / 6x6
Manufactured by Boom Racing
Manufacturer number: BRTLB002
